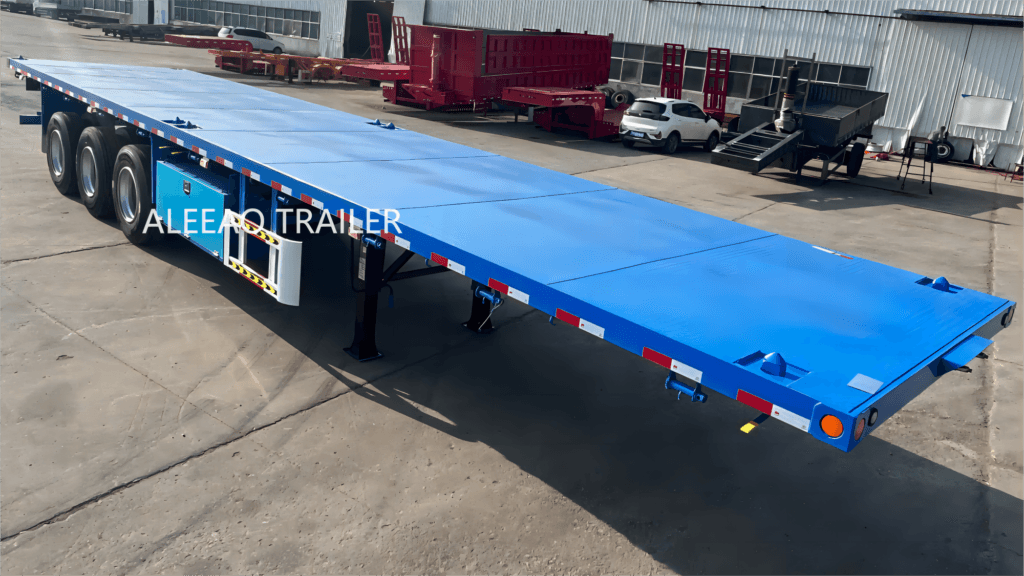

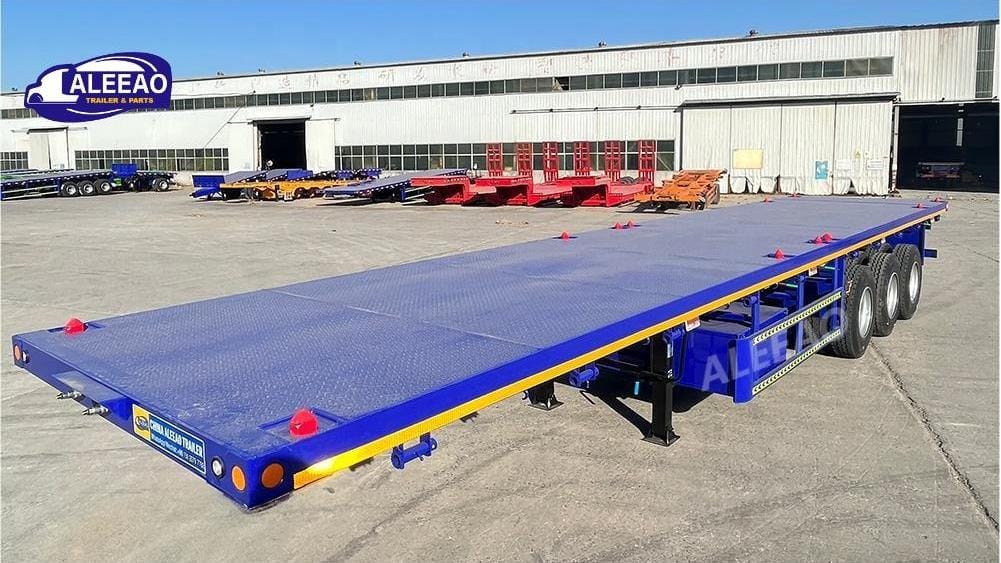

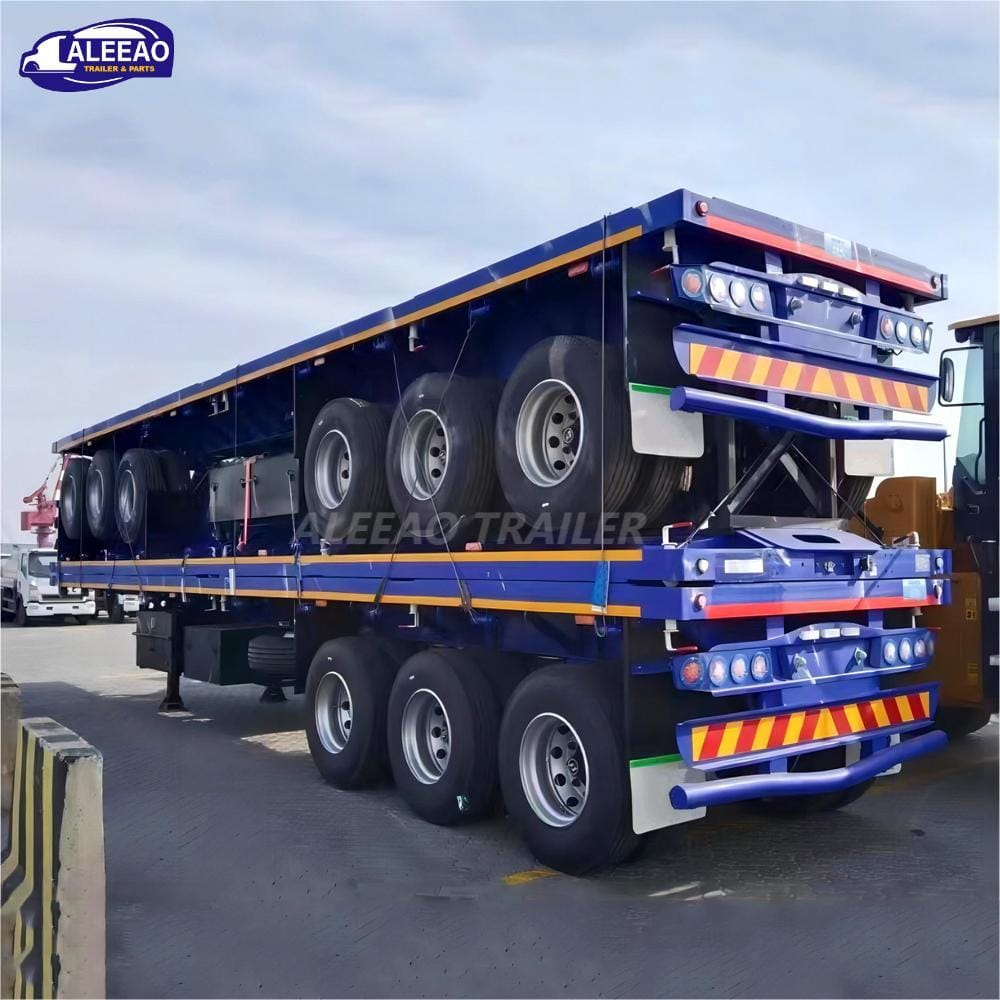

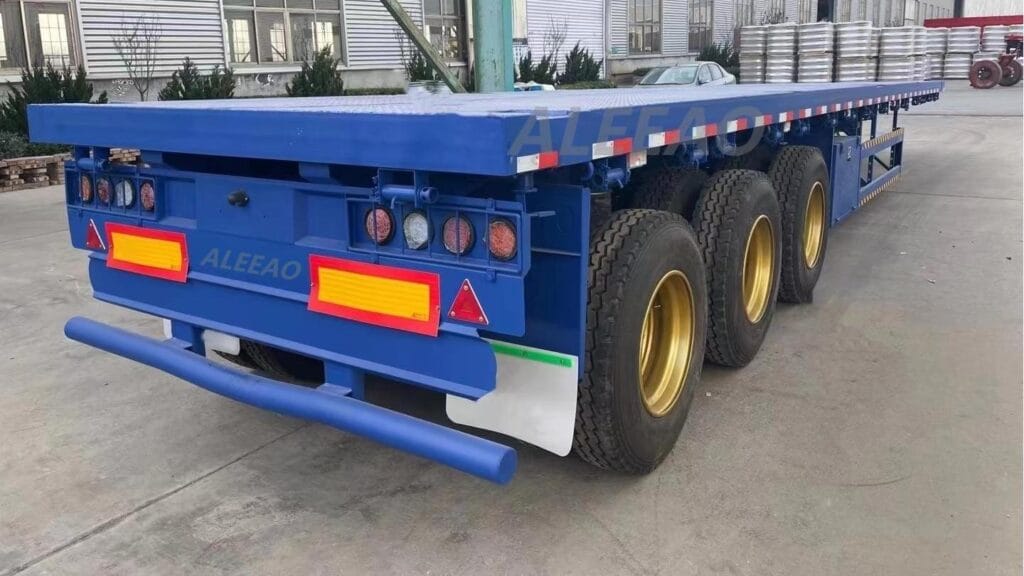

ALEEAO 3 Axle Flatbed Semi trailer
The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰,which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 40-80 Tons Loading Range.
The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3 mm thick pattern.
This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
We adopt world famous brand of parts, like Fuwa axle, BPW axle, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs.
Fuwa/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

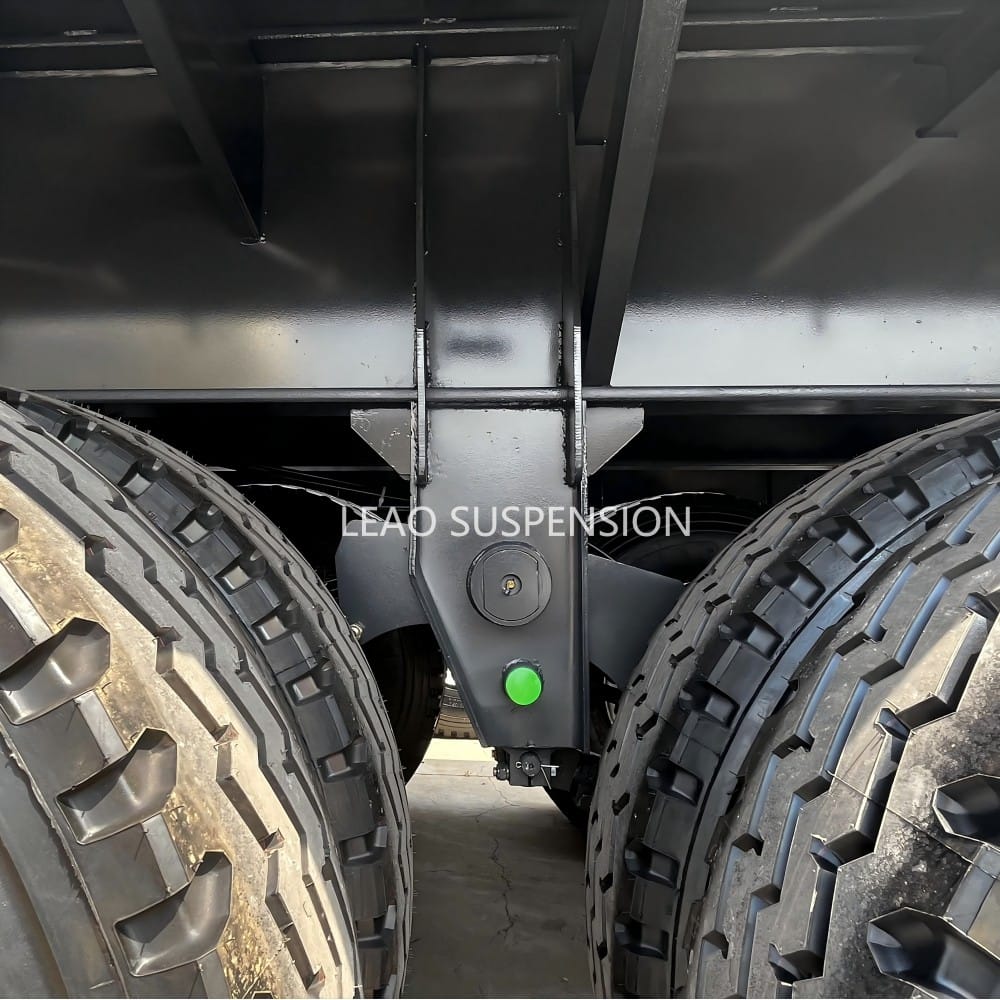

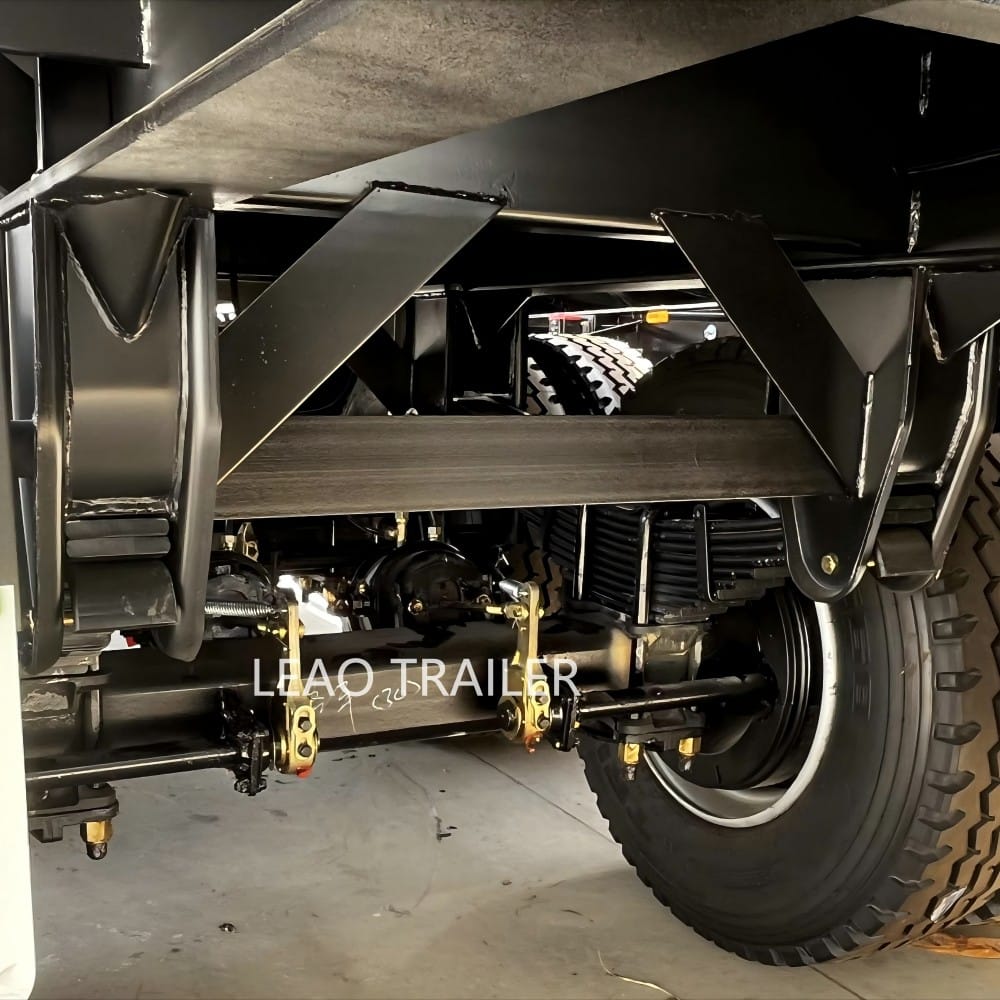

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion.Mean while,Easy to disassemble and maintain.
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.

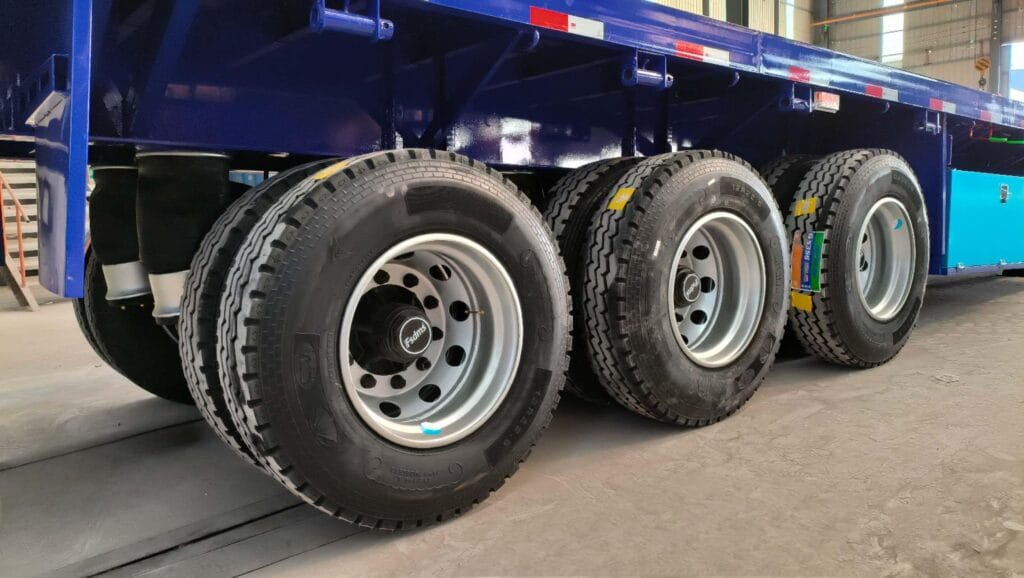

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice.Better Performance in wear resistance.
